| Brand Name: | ED8 |
| Model Number: | T11212-20mH Horizontal |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100pieces / Carton size:380mm*325mm*345mm |
| Payment Terms: | T/T paypal xtransfer |

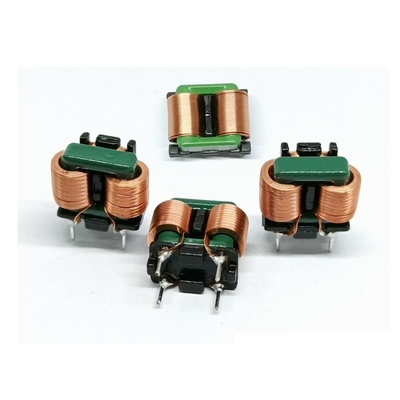

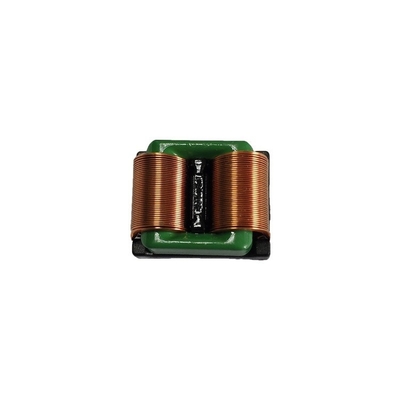

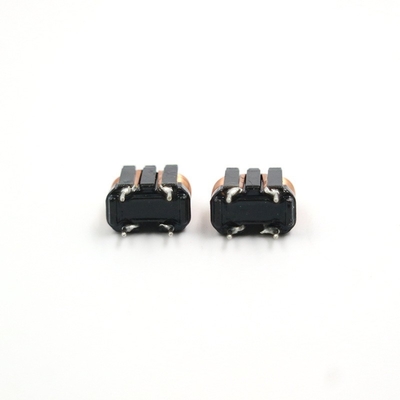

10mh 100uh 20-60W 3.0A Flat Choke Filter Inductor High-Power Common Mode Power Inductors
1. The inductance of flat coil is an inductor of flat enameled wire coil, which consists of a coil part, the connecting feet extending at both ends of the coil part, and a magnetic guide seat and cover body formed by die casting of iron powder;
2.The coil part is a flat coil conductive electromagnetic wire, and the connecting feet at both ends bend towards the direction of the external circuit, and there is an insulating coating on the outer surface of the coil part and the joint foot, and only a part of the joint foot is exposed as the joint surface connected with the external circuit, so the joint foot is pre-shaped and put together with the flat coil part in the magnetic guide seat.
Characteristics and application of flat wire inductance
1.Use flat wire.
2.shielded inductance structure.
3.The DC resistance of the same size is the lowest.
4.It can ensure smooth decrease of current-resistant inductance value.
Product Size:
| Encapsulation: | Vertical |
| Inductance value: | 10-20mH |
| Size(Length X height): | 21mmx16.5mmx13mm |
| Current: | 5-10A |
|
|
