| Brand Name: | ED8 |
| Model Number: | EE19 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100pieces / Carton size:380mm*325mm*345mm |
| Payment Terms: | T/T paypal xtransfer |

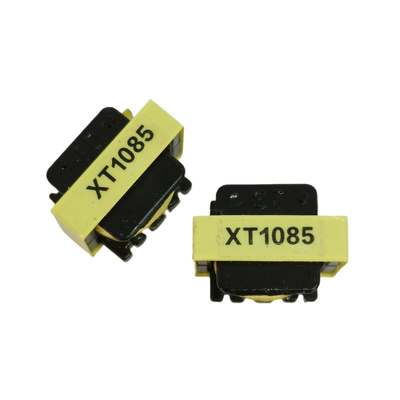

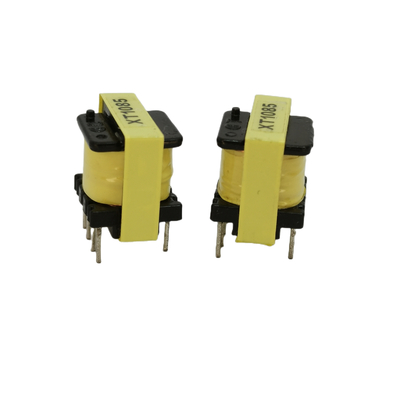

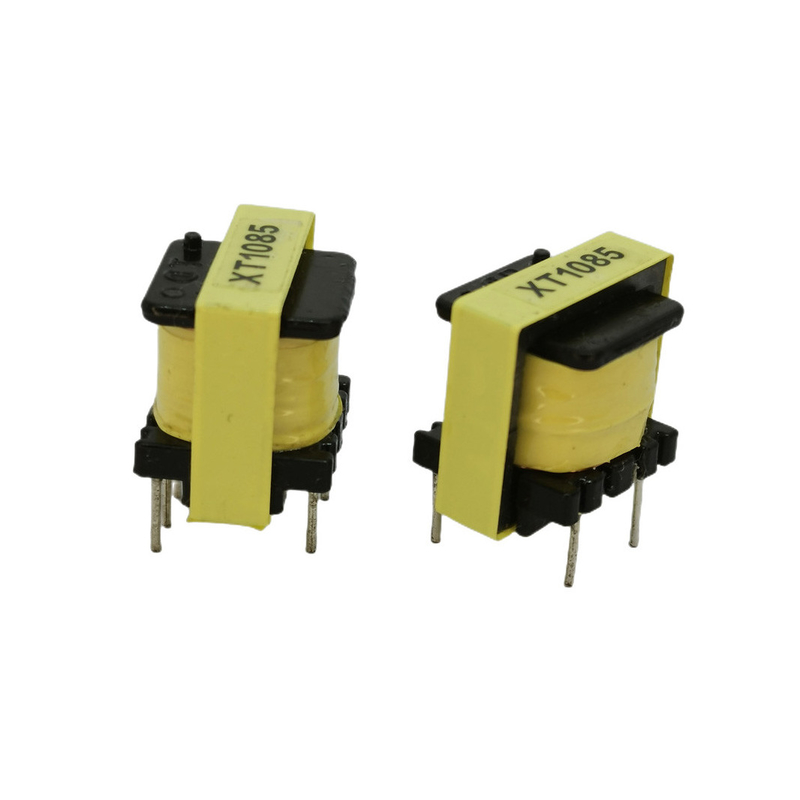

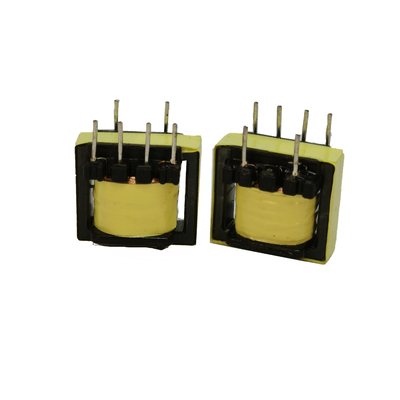

EE19 Vertical 12v Small High Voltage Pcb Transformer High Frequency Transformer
Features: Small size, small footprint, easy installation, low price, high reliability!
Uses: high frequency transformers are often used in DC-DC converters, inverter drive transformers, PC power transformers, etc.
| Model No. | High frequency transformer |
| Working Frequency Range | 1KHz-1MHz |
| Output Power | 1W-5000W |
| Output Voltage | 0.1V-45000V |
| Output Current | 0.001A-150A |
| Storage Temperature | -25℃ to +85℃ |
| Working Temperature | -40℃ to +1250 |
| Storage Humidity | 30% to 70% |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949:2016, UL/cUL, ROHS, REACH, CQC |
| Designing Information | operating frequency |
| circuit topology. | |
| input voltage range | |
| output power (V/A) | |
| mounting dimensions | |
| safety requirements | |
| product application |
How to order
1. Please send me the data sheet or part number you need.
2. We will provide a replacement quotation for your reference
3. Free samples are available for your approval.
4. After sample testing, we will enter bulk order.
5. A pro forma invoice will be sent to you for confirmation
6. After the goods are finished, we will send the goods to you and tell you the tracking number.
7. We will track your shipment until you receive it.
Comment:
1. Sample order is available.
2. Large quantity can be negotiated.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for a list of available series.
Our service:
1. 100% tested before shipment
2. There are alternatives to Halo, Pulse, We-online, Chilisin, Coilcraft...same quality but better price
3. Provide free samples
4. Provide customers with new designs
FAQ:
1. Are you a trading company or a factory?
We are a factory, established in 2011, one of the leading companies of inductors and transformers in China. An independent team of engineers, advanced production and testing equipment, escort your quality.
2. What is the delivery time?
There is stock for in-stock products. For customized samples, 5-10 days. For mass order, 15-30 days depends on quantity and stock of raw materials.
3. What is your price?
Price depends on product specification, quantity, market factors. A price list is available when contacting us.
4. Can you provide relevant documents?
Business licenses, ISO, SGS, RoHS certificates or export documents, you can get everything you need to keep your money and goods safe.
5. What payment methods do you accept?
A bank account is preferred. Western Union, PayPal or other methods are also acceptable.
6. What is the product warranty policy?
Our corporate culture is that we are responsible for the quality of our products for life.
7. How to ensure the safe and reliable delivery of products?
Deliver the goods safely to your hands with high-quality export packing cartons and protective packaging methods. We have more than 10 years of packaging experience, whether it is air, sea or truck transportation. Also, if anything goes wrong, shipping insurance is a good option.
|
