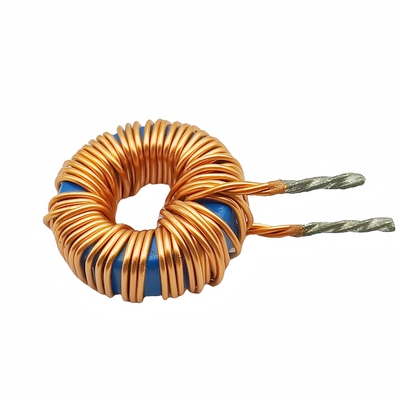

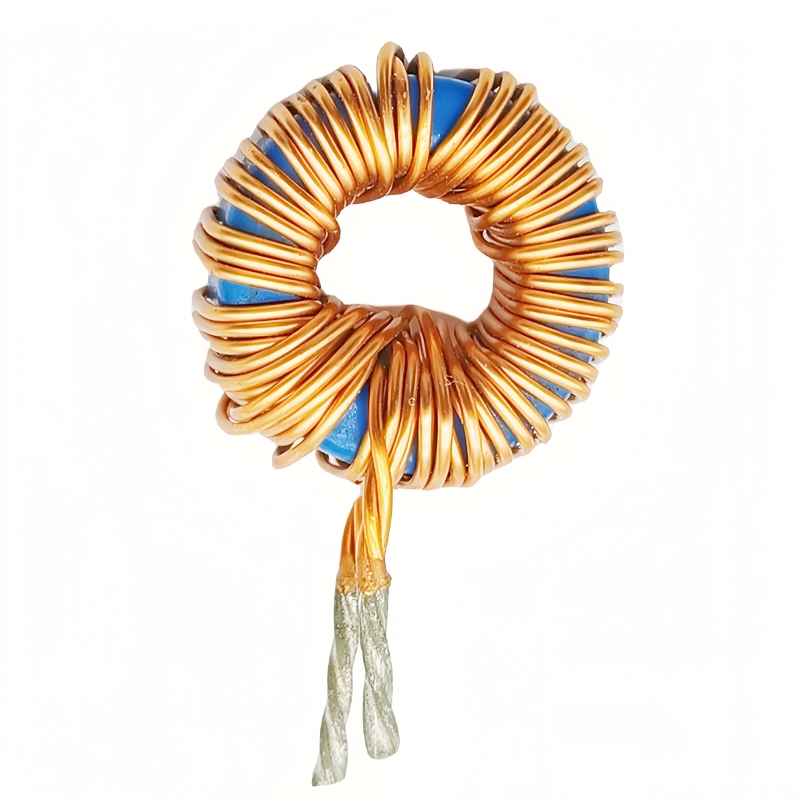

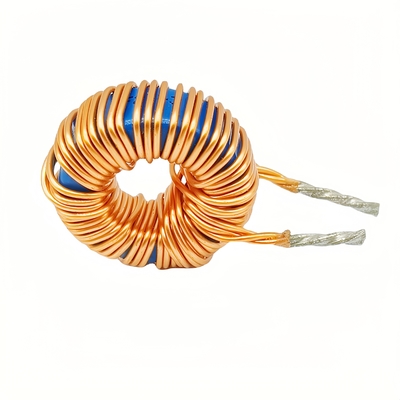

A Small Magnetic Ring Inductor is an electronic component that operates on the principle of electromagnetic induction and usually consists of a ring-shaped iron core and windings wound around the core. The following is its general introduction:
1. Structural features: the core is ring-shaped, the windings are evenly wound on the core, the structure is compact and symmetrical, and this structure makes the magnetic circuit closed, with less magnetic leakage and uniform magnetic field distribution.
2. Performance advantages: high magnetic efficiency, can effectively utilize the magnetic field energy, conversion efficiency usually reaches more than 90%; low electromagnetic interference, can reduce the interference to the peripheral equipment and enhance their own anti-interference ability; small size, light weight, in the same power than the traditional EI-type transformer to save space and weight; good mechanical properties, can withstand large vibration and shock; low operating noise, to meet the high requirements for the noise of the environment. The operating noise is low, which can satisfy the environment with high requirements for noise.
3. Working principle: based on the law of electromagnetic induction, when the primary winding is fed with alternating current, it will generate alternating magnetic field, which induces electromotive force in the secondary winding, thus realizing the transformation of voltage and current and transmission of electric energy, and the primary and secondary windings are electrically isolated through magnetic field coupling.
| Model Number | Small Magnetic Ring Inductor |
| Material | Magnetic ring ,copper wire |
| Place of Origin | Guangdong, China |
| Brand Name | ZXY |
| Usage | Power electronics field |
| Wire dia. | 0.025~2.0 |
| Winding | Customized |
| Lead way | Pins |
| DC Resistance (mΩ) | Customized |
| Parameters | Customized |
| Storage humidity | 30% to 95% |
1. Voltage transformation: this is the most basic function of transformer, small toroidal transformer can transform the input high voltage into low voltage suitable for electronic equipment, or raise the low voltage to the required high voltage to meet the requirements of different equipment on the power supply voltage.
2. Current transformation: according to the principle of electromagnetic induction, while the voltage is transformed, the current will be transformed accordingly to meet the demand of the equipment on the current, to realize the transmission and matching of power.
3. Isolation: small toroidal transformer coupled between the primary and secondary sides through the magnetic field, there is no direct electrical connection, thus playing the role of electrical isolation, can effectively prevent interference between electrical equipment and leakage and other safety issues, improve the safety and stability of the equipment.
4. Power transmission: it can transmit power from the power supply side to the load side, and in the transmission process, it converts electric energy into magnetic field energy through electromagnetic induction, and then converts magnetic field energy into electric energy, realizing the efficient transmission of power, and providing the required energy for the electronic equipment.
|
