| Brand Name: | ZXY |
| Model Number: | EI66 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1000pieces / Carton size:380mm*325mm*345mm |
| Payment Terms: | T/T paypal xtransfer |

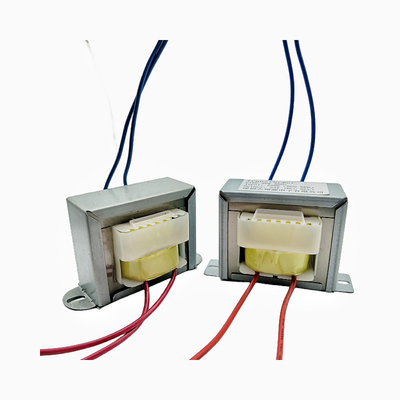

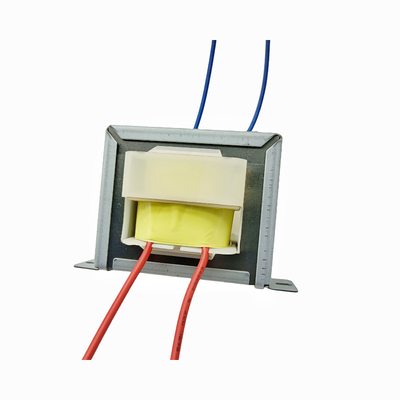

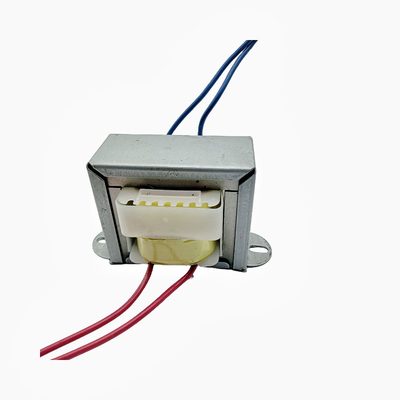

The EI66 Power Supply Transformer is a highly efficient and reliable electrical component designed to meet diverse power conversion needs. It excels in stepping down the input AC 220V voltage to a stable 23V output, with a power capacity of 30W. One of its prominent advantages lies in its high - efficiency operation. By employing a core made of high - quality silicon steel, magnetic hysteresis losses are significantly reduced, and the use of high - purity copper windings minimizes resistance, ensuring a smooth and efficient power transfer. This not only leads to lower energy consumption but also extends the lifespan of connected devices.
Its compact design is another major plus. The EI66 structure allows it to fit into tight spaces, making it an ideal choice for applications where space is at a premium, such as in small electronic devices or compact power supply units. Despite its small size, it doesn't compromise on performance.
Moreover, this transformer is highly reliable. It can withstand various operating conditions, including voltage fluctuations and temperature changes, providing a stable power output. This reliability ensures the consistent operation of equipment powered by it, reducing the risk of malfunctions and downtime. In summary, the EI66 Power Supply Transformer combines high efficiency, compactness, and reliability, making it a top - notch solution for power conversion in numerous electrical and electronic applications.
| Working Process | How It Works | Advantages During Operation |
| Input Voltage Application | An alternating current (AC) voltage of 220V is applied to the primary winding of the EI66 Power Supply Transformer. The time - varying current in the primary winding creates a time - varying magnetic field around it. | The high - quality silicon steel core used in the transformer has a high magnetic permeability. This allows it to efficiently capture and guide the magnetic field generated by the primary winding, reducing magnetic leakage. As a result, more of the magnetic energy is available for transfer to the secondary winding, contributing to high - efficiency power transfer. |
| Magnetic Flux Induction | According to Faraday's law of electromagnetic induction, the time - varying magnetic field passing through the secondary winding induces an electromotive force (EMF) in it. The number of turns in the primary winding ((N_p)) and secondary winding ((N_s)) determines the transformation ratio ((k=frac{N_s}{N_p})). In the case of EI66 stepping down from 220V to 23V, the ratio is set accordingly. | The precise design of the winding turns ratio enables accurate voltage conversion. The use of high - purity copper in the windings, which has low resistance, ensures that the induced EMF can be effectively transferred as an output voltage with minimal power loss. This leads to a stable and accurate 23V output voltage for the connected devices. |
| Output Voltage Generation | The induced EMF in the secondary winding results in an output AC voltage of 23V. This output voltage is then used to power electrical and electronic devices. | The compact design of the EI66 transformer, with its optimized core and winding arrangement, allows for efficient space utilization even during the power conversion process. It can fit into small enclosures or tight - space applications while still maintaining its high - performance power conversion capabilities. Additionally, the transformer's ability to withstand voltage fluctuations during this process ensures a stable 23V output, protecting the connected devices from potential damage due to voltage instability. |
| Heat Dissipation | During operation, due to resistance in the windings and magnetic losses in the core, some heat is generated. The transformer needs to dissipate this heat to maintain its performance and lifespan. | The materials used, such as the high - conductivity copper windings, not only contribute to efficient power transfer but also help with heat dissipation. Copper's good thermal conductivity allows heat to be transferred away from the windings more effectively. The EI66's design also takes into account heat dissipation, ensuring that it can operate continuously without overheating, which is crucial for its long - term reliability. |
| Core type | power | Length | width | height | Stack up | pitch-row | Total length | weight |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | KG | ||
| Ei28*13 | 1W | 30 | 30 | 27 | 13 | 42 | 52 | 0.07 |
| Ei3515 | 2W | 37 | 34 | 32 | 17 | 47 | 58 | 0.13 |
| Ei41*17 | 3W | 53 | 37 | 36 | 18 | 53 | 64 | 0.18 |
| Ei41*20 | 5W | 43 | 42 | 36 | 22 | 56 | 67 | 0.23 |
| Ei48*18 | 8W | 50 | 40 | 42 | 21 | 61 | 73 | 0.3 |
| Ei48*24 | 10 W | 50 | 45 | 43 | 26 | 61 | 74 | 0.36 |
| Ei48*26 | 12 W | 50 | 45 | 44 | 29 | 61 | 72 | 0.4 |
| Ei57*25 | 15W | 60 | 50 | 51 | 28 | 72 | 85 | 0.53 |
| Ei57*30 | 20 W | 60 | 54 | 51 | 32 | 73 | 87 | 63 |
| Ei57*35 | 25 W | 60 | 59 | 51 | 38 | 76 | 90 | 0.82 |
| Ei66*32 | 30 W | 69 | 58 | 58 | 35 | 85 | 96 | 0.96 |
| Ei66*32 | 40 W | 69 | 58 | 58 | 35 | 85 | 96 | 0.98 |
| Ei66*36 | 50 W | 69 | 61 | 59 | 38 | 82 | 100 | 1.04 |
|
|
