| Brand Name: | ZXY |
| Model Number: | ZXY3108-600:10K |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1000pieces / Carton; Size:380mm*325mm*345mm |
| Payment Terms: | T/T ,paypal transfer |

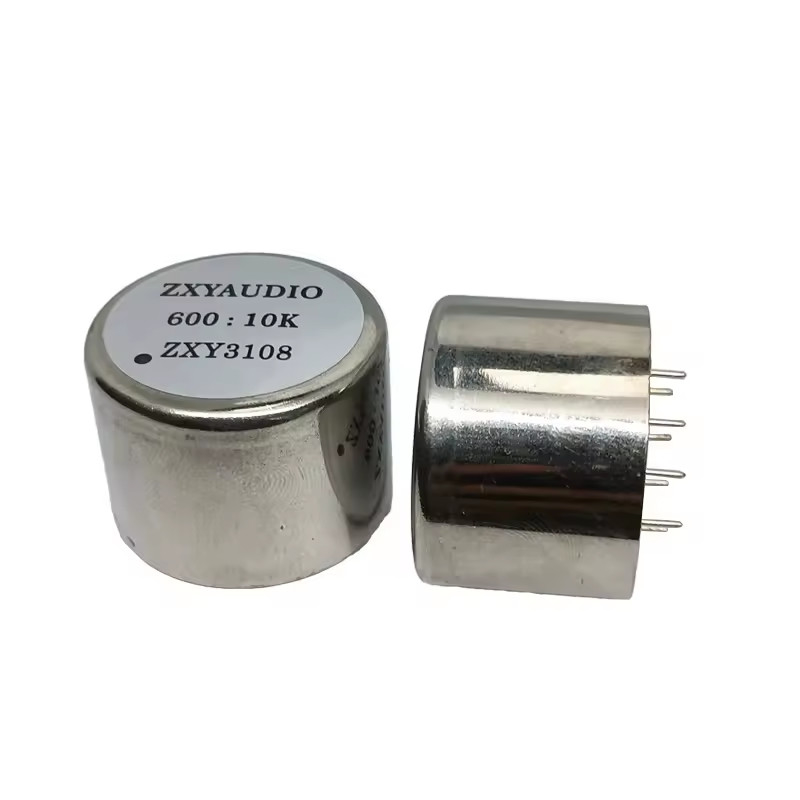

600:10K Permalloy Audio Transformer ZXY3108 is a transformer designed for high fidelity audio signal transmission, using Permalloy core with high permeability and low loss characteristics. With an input impedance of 600Ω and an output impedance of 10kΩ, the transformer is suitable for impedance matching and signal isolation of audio equipment, and can effectively eliminate ground loop noise and electromagnetic interference (EMI). The transformer supports wide frequency response (20Hz - 20kHz), ensuring high fidelity transmission and low distortion of audio signals. Widely used in professional audio equipment, studio equipment, sound systems and broadcasting equipment, it is an ideal choice to enhance the quality of audio signals.
| Application Scenarios | How it Operates | Significance in the Application |
| Professional Recording Studios | When connecting a 600ohm impedance microphone to a 10Kohm impedance audio interface or pre - amplifier, the 600:10K turns ratio of the ZXY3108 transformer steps up the voltage from the microphone. According to the principle of electromagnetic induction, the alternating current audio signal from the microphone flowing through the primary winding (with 600 - turn equivalent) generates an alternating magnetic field. This magnetic field, carried by the high - permeability permalloy core, induces an alternating current in the secondary winding (with 10K - turn equivalent). The high magnetic permeability of permalloy reduces magnetic reluctance, ensuring efficient transfer of the magnetic field and minimizing power loss during this process. | It enables seamless connection between microphones with low impedance and audio equipment with high impedance. By precisely matching the impedance, it maximizes the power transfer from the microphone to the recording device, reducing signal distortion and noise. This results in high - quality audio recordings with accurate reproduction of every nuance of the sound source, which is crucial for professional music production. |
| Live Performances | For connecting a 600ohm impedance instrument (such as a guitar with a passive pickup) to a 10Kohm impedance power amplifier or mixing console. The audio signal from the instrument enters the primary winding of the transformer. As the signal varies, the magnetic field in the permalloy core changes accordingly. The secondary winding then outputs a signal with a stepped - up voltage suitable for the high - impedance input of the amplifier or console. | In live performance scenarios, the transformer ensures that the audio signals from different instruments can be effectively combined and amplified. It helps in maintaining a consistent sound level across various instruments and performers, enhancing the overall sound quality of the live show. By providing proper impedance matching, it also protects the instruments and audio equipment from potential damage due to improper impedance connection. |
| Broadcast Stations | When transmitting audio signals from a 600ohm impedance studio output to a 10Kohm impedance transmission line or broadcast equipment. The audio signal from the studio, which is an alternating current, causes a magnetic field to be generated in the primary winding of the ZXY3108 transformer. The permalloy core channels this magnetic field to the secondary winding, where a higher - voltage signal is induced for the high - impedance transmission line. | It ensures reliable and high - quality audio signal transmission from the studio to the broadcast equipment. By matching the impedance between different parts of the broadcast system, it reduces signal reflections and losses during long - distance transmission. This is essential for delivering clear and consistent audio content to the audience, maintaining the professional standard of the broadcast station. |
| High - end Home Audio Systems | When connecting a 600ohm impedance turntable or CD player to a 10K惟 impedance integrated amplifier. The audio signal from the source device flows through the primary winding of the transformer. The alternating magnetic field generated in the primary winding is transferred to the secondary winding via the permalloy core, and a voltage - stepped - up signal is sent to the amplifier. | In a high - end home audio system, the transformer plays a key role in optimizing the connection between different audio components. It allows for a more efficient transfer of audio signals, improving the overall sound quality. The electrical isolation provided by the transformer also protects the audio components from electrical interference, ensuring a pure and immersive audio experience for the listeners. |
|
