| Brand Name: | ZXY |
| Model Number: | ZXY-EE13 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

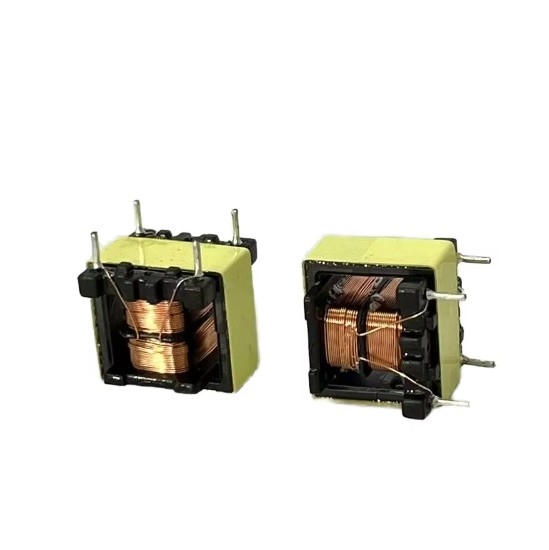

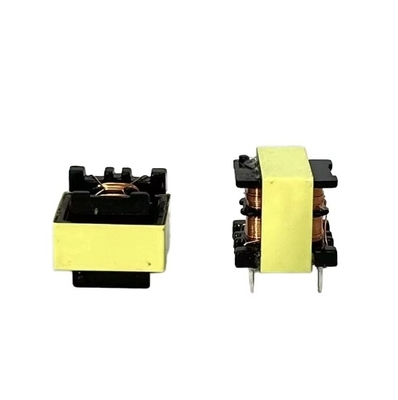

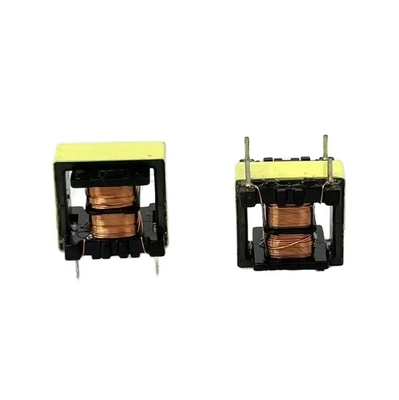

EE13 High Frequency Transformer is one kind of EE type magnetic core series, adopting ferrite core, with high frequency characteristics, suitable for switching power supply and many kinds of electronic circuits.
EE13 High Frequency Transformer Basic Characteristics:
1.High magnetic flux density: the use of high-quality ferrite cores, has a high magnetic flux density, can withstand a large magnetic induction intensity.
2.High permeability: the core has high permeability, which can reduce the magnetic resistance and improve the efficiency of the transformer.
3.Low loss: in the working process, the transformer produces low loss, which can improve the efficiency of power utilization.
4.Strong anti-interference performance: strong anti-interference ability, can work stably in the complex electromagnetic environment.
Main Parameters:
| Operating frequency | 20kHz to 500kHz |
| Output power | 0.5-20W |
| Product efficiency | High |
| Operating temperature | -40℃ to +125℃ |
| High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | |||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | |||||||||||
| EF | EF16, EF20, EF25 | |||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | |||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | |||||||||||
| EP | EP7, EP10, EP13 | |||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | |||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | |||||||||||
| POT | POT3016, POT3930 | |||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | |||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | |||||||||||
Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.
Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.
Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
|
