| Brand Name: | ZXY |
| Model Number: | ZXY-EI57 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

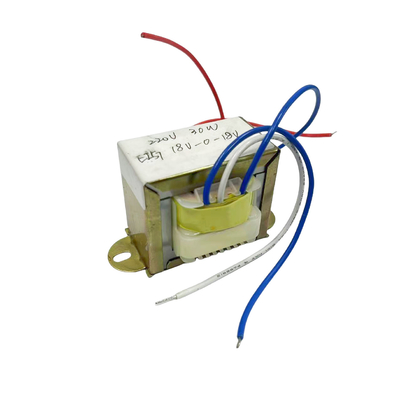

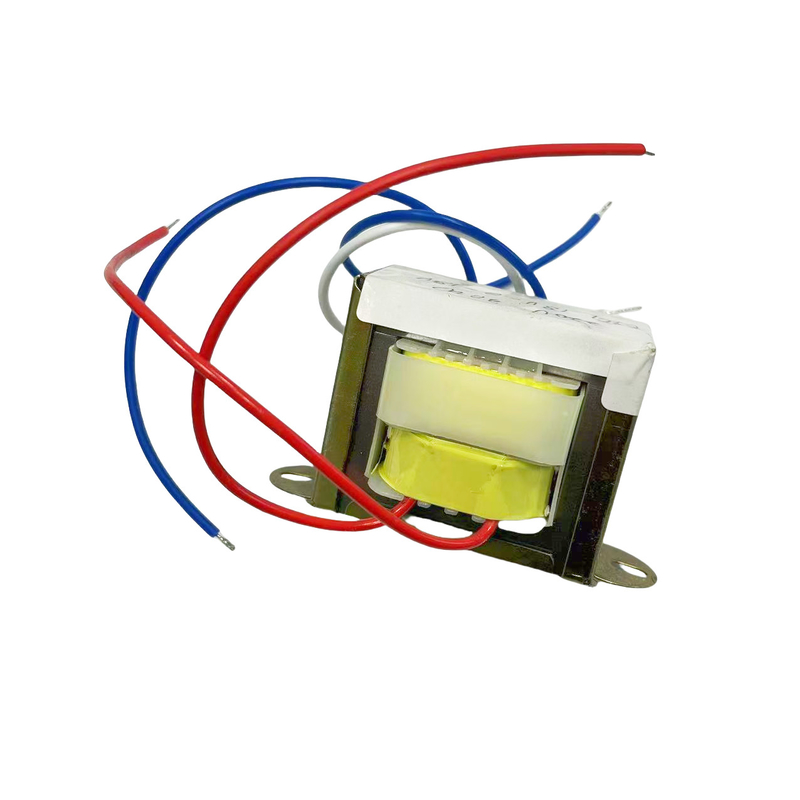

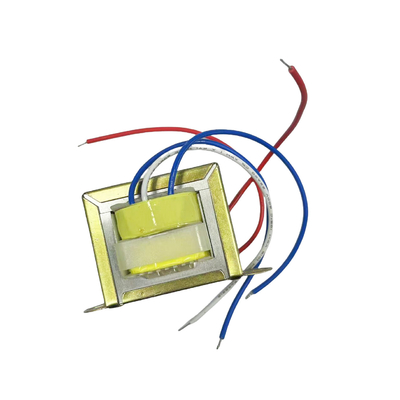

EI57 Low Frequency Transformers Features:
1. Stable voltage output: EI57 Low Frequency Transformers can effectively convert the input voltage and provide stable output voltage to ensure the normal operation of downstream circuits.
2. Low Magnetic Leakage: Due to its reasonable core design, EI57 Step Down Transformer has low magnetic leakage, which reduces the interference to the surrounding circuits.
3. Overload protection capability: able to withstand a certain degree of overload, to ensure the safety of equipment in unexpected situations.
4. Good heat dissipation performance: Due to its design taking into account the thermal effect, the EI57 Low Frequency Transformer can also maintain good heat dissipation performance under high power applications.
| Operating temperature | -40℃ to +125℃ |
| Storage temperature | -25℃ to +85℃ |
| Storage humidity | 30% to 95% |
| Place of Origin | Huizhou.China |
| Supplier | Manufacturer |
Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.
Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.
Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
| Core type | power | Length | width | height | Stack up | pitch-row | Total length | weight |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | KG | ||
| Ei28*13 | 1W | 30 | 30 | 27 | 13 | 42 | 52 | 0.07 |
| Ei3515 | 2W | 37 | 34 | 32 | 17 | 47 | 58 | 0.13 |
| Ei41*17 | 3W | 53 | 37 | 36 | 18 | 53 | 64 | 0.18 |
| Ei41*20 | 5W | 43 | 42 | 36 | 22 | 56 | 67 | 0.23 |
| Ei48*18 | 8W | 50 | 40 | 42 | 21 | 61 | 73 | 0.3 |
| Ei48*24 | 10 W | 50 | 45 | 43 | 26 | 61 | 74 | 0.36 |
| Ei48*26 | 12 W | 50 | 45 | 44 | 29 | 61 | 72 | 0.4 |
| Ei57*25 | 15W | 60 | 50 | 51 | 28 | 72 | 85 | 0.53 |
| Ei57*30 | 20 W | 60 | 54 | 51 | 32 | 73 | 87 | 63 |
| Ei57*35 | 25 W | 60 | 59 | 51 | 38 | 76 | 90 | 0.82 |
| Ei66*32 | 30 W | 69 | 58 | 58 | 35 | 85 | 96 | 0.96 |
| Ei66*32 | 40 W | 69 | 58 | 58 | 35 | 85 | 96 | 0.98 |
| Ei66*36 | 50 W | 69 | 61 | 59 | 38 | 82 | 100 | 1.04 |
|
