| Brand Name: | ZXY |
| Model Number: | ZXY-EI41 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

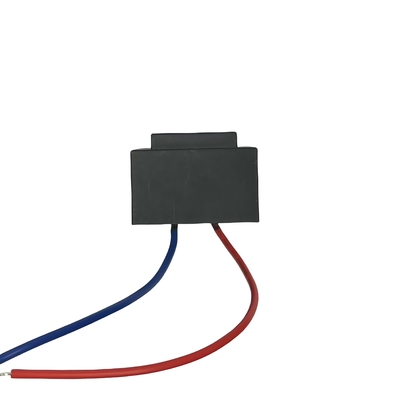

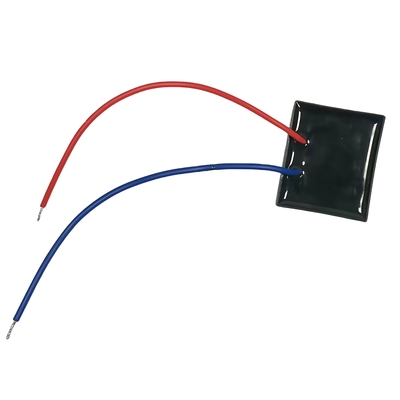

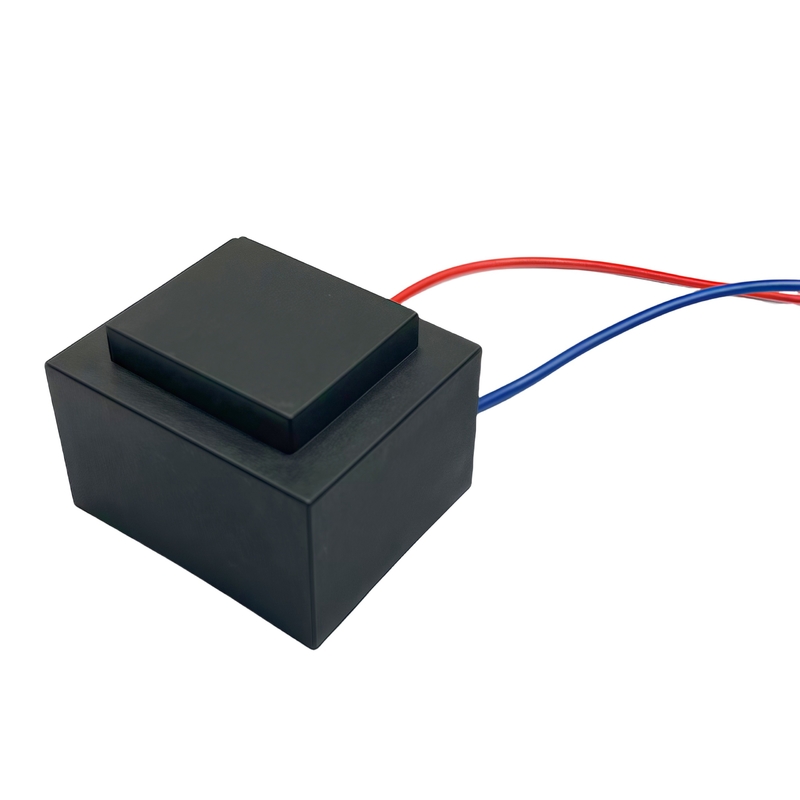

The Potting Wiring EI41 Low Frequency Power Transformer is a specialized electrical component designed to efficiently handle low - frequency power applications. It features an EI - shaped core, which is constructed from high - quality magnetic materials. This core design, with its two - part E - shaped and I - shaped laminations, provides excellent magnetic coupling, ensuring effective transfer of electrical energy between the primary and secondary windings. The windings are carefully wound around the core, and the potting wiring technique is employed. Potting involves encapsulating the transformer's internal components in a protective resin or compound. This not only offers enhanced mechanical protection, safeguarding the windings from vibrations, impacts, and environmental factors like dust and moisture but also improves the electrical insulation, reducing the risk of short - circuits and electrical interference.
Operating in the low - frequency range, typically from 50 Hz to 1000 Hz, this transformer is well - suited for applications where stable and reliable power conversion is crucial. It can handle various power levels, making it adaptable for use in a wide array of devices. In industrial settings, it might be utilized in power supplies for machinery, providing the necessary voltage transformation to ensure smooth operation. In audio equipment, such as amplifiers, it plays a vital role in powering the circuits and ensuring high - quality sound output by delivering clean and regulated power. Overall, the Potting Wiring EI41 Low Frequency Power Transformer combines robust construction, reliable performance, and effective protection mechanisms, making it a preferred choice for numerous low - frequency power - related applications.
| Performance Feature | Description |
| Core Structure | Utilizes an EI - shaped core made of high - quality magnetic materials. The E - shaped and I - shaped laminations work together to offer outstanding magnetic coupling, facilitating efficient transfer of electrical energy between primary and secondary windings. This design helps in minimizing magnetic flux leakage, thus improving overall energy efficiency. |
| Potting - enhanced Protection | The potting wiring technique is applied, where the internal components are encapsulated in a protective resin or compound. This provides enhanced mechanical protection against vibrations and impacts. It also acts as a shield against environmental elements like dust and moisture, significantly extending the transformer's lifespan. Moreover, the potting material improves electrical insulation, reducing the likelihood of short - circuits and electrical interference. |
| Low - frequency Operation | Operates within the low - frequency range, typically from 50 Hz to 1000 Hz. This makes it highly suitable for applications that require stable power conversion at these frequencies, such as in industrial machinery power supplies and audio equipment where precise voltage regulation at low frequencies is crucial. |
| Power - handling Capability | Can handle a wide range of power levels, making it adaptable to various applications. Whether it's a small - scale device requiring a few watts or a larger industrial machine demanding several hundred watts, the EI41 Low Frequency Power Transformer can be designed to meet the specific power requirements. |
| Stable Performance | Thanks to its well - designed core and winding structure, as well as the protective potting, it offers stable performance over time. The transformer can maintain consistent voltage transformation ratios, ensuring reliable power supply to the connected devices. It also has a low tolerance for voltage fluctuations, providing clean and regulated power output even under varying input conditions. |
| High - quality Windings | The windings are carefully wound around the core using high - conductivity materials, usually copper. This ensures low resistance in the windings, reducing power losses in the form of heat. High - quality winding also contributes to better electromagnetic performance, enabling the transformer to operate efficiently and accurately in its intended applications. |
|
